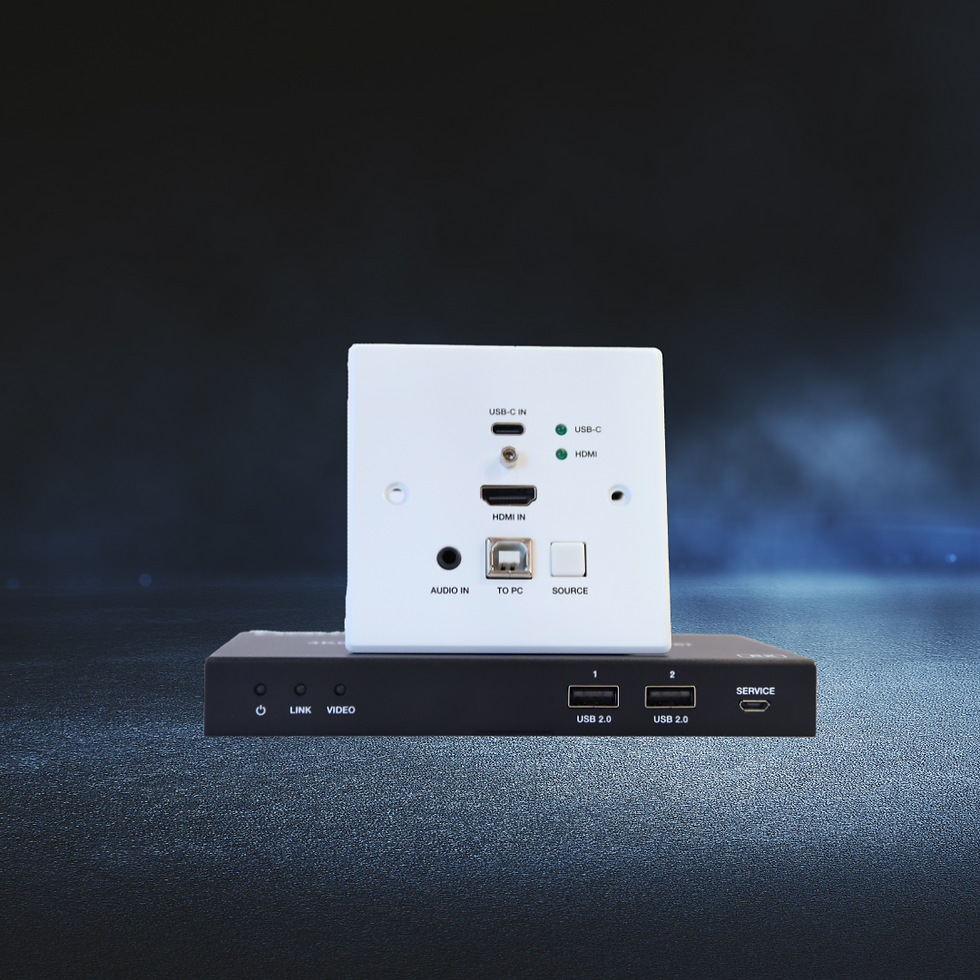

4K HDMI/USB-C HDBaseT WALL PLATE EXTENDER

WP100

Features

This 4K60 HDMI/USB-C 2x1 HDBT Wall-plate Transmitter supports one HDMI input and one USB-C that fits on a standard 86mm×86mm wall box. It can transmit HDMI high-definition signal, bidirectional IR control signal, bidirectional RS-232 control signal and USB 2.0 signal over CAT6 to the distance up to 328ft/100m (HBT mode) or 492ft/150m (LRM mode). Video resolution is up to 4K2K@60Hz (4:4:4).

Specification

Technical

Bandwidth

Compliance

Compression Standard

Transmission Distance

Video Resolution

Colour Space

Colour Depth

HDMI Audio Format

- 18Gbps (HDMI)
- 5.4Gbps (USB-C)

- HDMI 2.0b
- HDCP 2.2

- HDBT

- LRM Mode: 492FT/150m (4K30/1080P)
- STD-HBT Mode: 328ft/100m (4K60/4K30/1080P)

- Up to 4K60Hz 4:4:4

- RGB / YCbCr 4:4:4, YCbCr 4:2:2 / 4:2:0

- 8/10/12-bit

- LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Transmitter

HDBT

Video Input Connector

Other Connector

- 1 x RJ45 (Female)

- 1 x HDMI Type A (Female)

- 1 x 3.5mm Stereo Mini Jack (Audio In)
- 1 x USB-C
- 1x USB-B
- 1 x 3pin-3.81mm Phoenix Connector (RS232)
- 1 x 3pin-3.81mm Phoenix Connector (IR In)
- 1 x 2pin-3.81mm Phoenix Connector (IR Out)

Receiver

HDBT

Video Output Connector

Other Connector

- 1 x RJ45 Female

- 1 x HDMI Type A (Female)

- 1 x 3pin-3.81mm Phoenix Connector (Audio Out)
- 1 x Micro USB (for update)
- 2x USB-A
- 1 x 3pin-3.81mm Phoenix Connector (RS232)
- 1 x 3pin-3.81mm Phoenix Connector (IR In)
- 1 x 2pin-3.81mm Phoenix Connector (IR Out)

Power

Power Supply

- Input: AC 110-240V 50/60Hz

- Output: DC 24V/1A

(US/EU standards, CE/FCC/UL certified)

Power Consumption

- 12.48W (max)

General

Physical Dimension (W x D x H)

- 86 x 86 x 38 mm (wall Plate)

- 140 x 65 x 18 mm (receiver)

Weight

Housing

Operating Temperature

Storage Temperature

Relative Humidity

- 0.234kg (wall plate)

- 0.377kg (receiver)

- Aluminum in White (wall plate)

- Metal (receiver)

- 0 – 40 °C

- -20 – 60 °C

- 20 – 90% RH (no condensation)

Safety

ESD Protection

- Human body model - ±8KV (Air-gap discharge) &

±4KV (Contact discharge)

Download

Click here to download Product DataSheet
