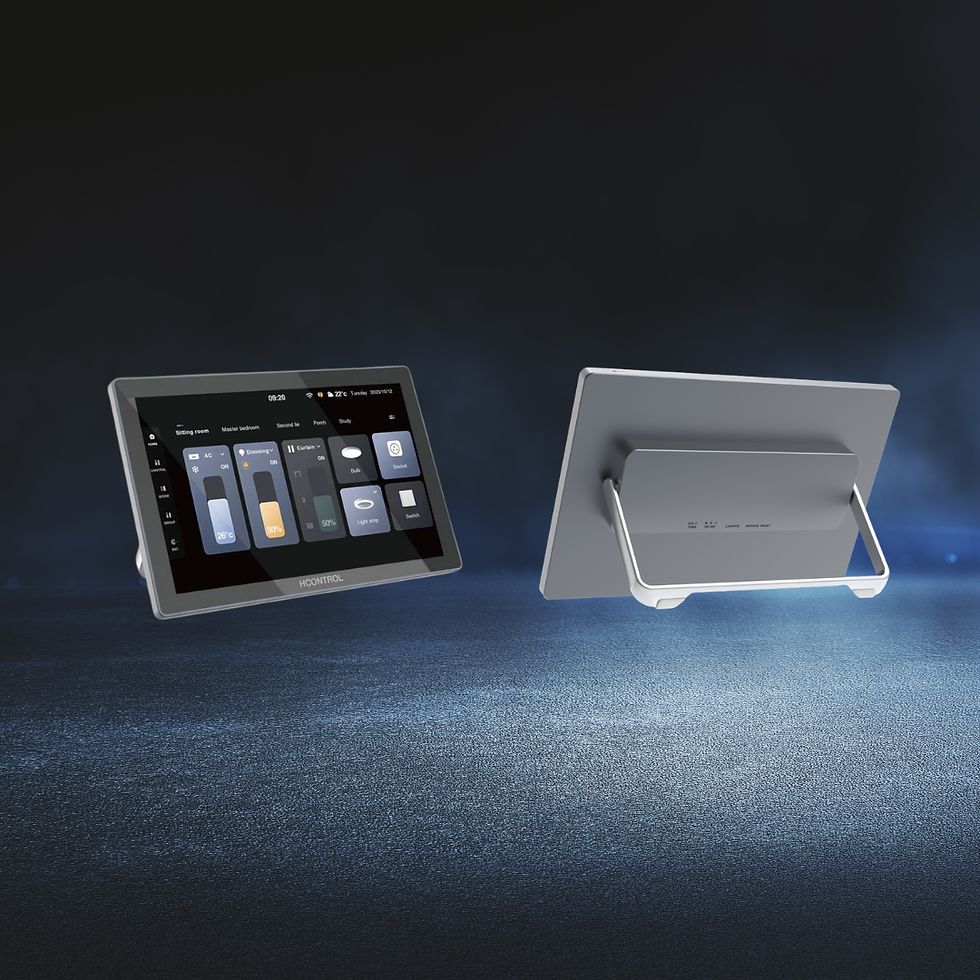

This programmable touch screen control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. This desktop touch panel is equipped with a capacitive touch screen with a resolution of 1280*800 and it supports one RS-485 serial port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi-functional halls, training centers, show room, broadcasting studios and industrial automation.

• ARM Cortex-A55 architecture 1.8GHz main frequency

• Android 11.0 system, 4GB DDR4 RAM, 32GB EMMC Flash

• 10-inch 1280*800 (16:10) resolution, desktop screen design

• Can be used as touch screen central control or user terminal

• Supports one RS-485 communication serial port, capable of configuring 8 baud rates in the range of 2400-115200bps

• Support access to the host system management web page with a password

• Compliant with industry standard network communication protocols (TCP/IP, Http, UDP, Websocket)

• With 1 Gigabit network port, the highest rate up to 1Gbps

• Dual power supply mode, supporting PoE or independent DC power supply

• Interface and function configuration via central control software

• Supports remote control, remote O&M, online upgrade

• Support factory reset
